The A1040 MIRA 3D Ultrasonic Tomograph is an advanced concrete imaging system featuring True3D® Tomography technology for real-time three-dimensional inspection. It enables accurate detection and evaluation of cracks, voids, delamination, reinforcement, and internal defects in concrete structures.

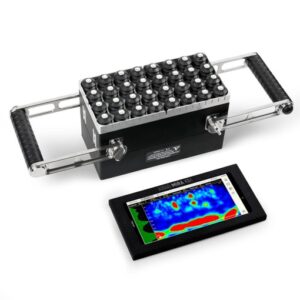

Product: A1040 MIRA 3D
A1040 MIRA 3D
Penetration depth up to 2 m (6.5 ft)
Maximum area coverage up to 10 × 10 m²
Suitable for large-scale concrete inspections
A1040 MIRA 3D
True3D® FMC/TFM imaging technology
Open-Crack Sizing functionality
High-sensitivity A-DPC® transducers
Real-time 2D and 3D imaging
Advanced ultrasonic tomography for structural concrete evaluation
Concrete and reinforced concrete inspection
Crack sizing and assessment
Void and delamination detection
Bridge, tunnel, slab, wall, and foundation investigations
Large-area structural condition assessment
True3D® Tomography with FMC/TFM technology
A-DPC® low-noise transducer technology
Open-Crack Sizing function
Extendable aperture with multiple array units
Real-time 3D visualization
Remote control via Tablet-PC or Laptop
INTROVIEW® PRO software included
Android and Windows application support
Array Configuration: 4 × 8 A-DPC® Transducers
Parallel DAQ Channels: 32
Frequency Range: 10–100 kHz
Penetration Depth: Up to 2 m
Maximum Coverage Area: 10 × 10 m²
2D Imaging Frame Rate: 25 Hz
3D Imaging Frame Rate: 2 Hz
Battery Operating Time: Up to 10 Hours
Volume Modes: Single Scan, Area Scan, Panorama B-Scan & D-Scan
3D Modes: ISO-Surface, Maximum Intensity Projection (MIP)
2D Modes: B-Scan, C-Scan, D-Scan, Cutting Plane, Gated Volume
Software: INTROVIEW® Pro with 12 Months Support & Updates
