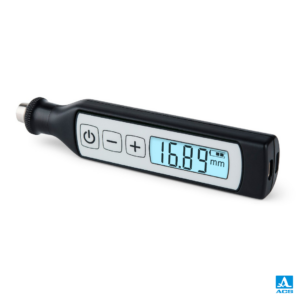

The PenGauge Ultrasonic Thickness Gauge is a compact pocket-sized instrument designed for rapid and accurate thickness measurement of metal and plastic components. Its built-in Bluetooth connectivity, lightweight design, and replaceable wear-resistant transducer make it ideal for field inspections and corrosion monitoring.
Product: A1207 PENGAUGE
A1207 PENGAUGE
Thickness measurement range: 0.8 to 100 mm (Steel)
Suitable for ferrous and non-ferrous metals, boilers, vessels, tanks, and pipes
Measures small-diameter pipes from 20 mm diameter
PenGauge
Measurement accuracy: ±(0.005X + 0.1) mm
Resolution selectable between 0.1 mm and 0.01 mm
Automatic transducer zero calibration
PenGauge Ultrasonic Thickness Gauge
USB Power Adapter
USB A – Micro B Cable
Calibration Sample
Android Application Software

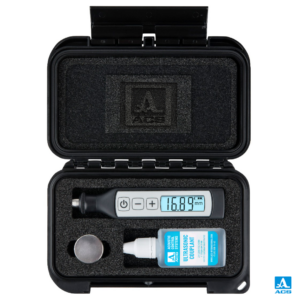

Carrying Case
Corrosion monitoring
Boiler and pressure vessel inspection
Pipe wall thickness measurement
Tank and storage vessel inspection
Metal and plastic component testing
Ultra-compact pocket-size design
Built-in Bluetooth connectivity
Real-time data transfer to Android devices

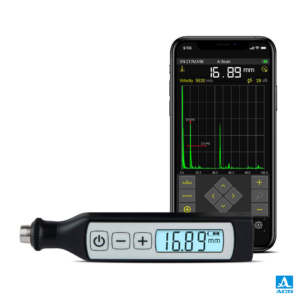

Live A-Scan display on smartphone or tablet
Hot-swappable wear-resistant transducer
Automatic calibration function
Lightweight and easy one-hand operation
Suitable for curved and corroded surfaces
Measurement Range: 0.8 – 100 mm
Transducer Type: Single Crystal
Transducer Frequency: 4 MHz
Transducer Diameter: 8 mm
Velocity Range: 1,000 – 9,000 m/s
Resolution: 0.01 mm / 0.1 mm
Display: LCD
Power Supply: Built-in Li-Pol Rechargeable Battery
Battery Life: Up to 16 Hours
Operating Temperature: -30°C to +50°C
Dimensions: 125 × 25 × 15 mm
Weight: 40 g
