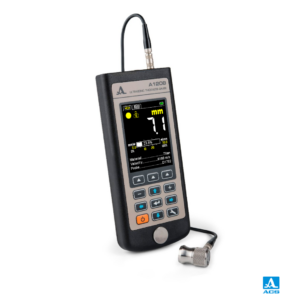

The A1208 Ultrasonic Thickness Gauge is a rugged, frost-proof instrument designed for accurate wall thickness measurement of metal and plastic components in harsh environments. It supports both single-crystal and dual-crystal transducers for corrosion monitoring, thin-wall inspection, and pitting corrosion detection.
Product: A1208
A1208
Thickness measurement range: 0.7 to 300 mm
Suitable for ferrous metals, non-ferrous metals, cast iron, and plastics
Detects pitting corrosion and measures thin-walled pipes
A1208
High-precision thickness measurement with up to 0.01 mm resolution
Accurate detection of pitting corrosion larger than 4 mm²
Reliable measurements on curved and rough surfaces

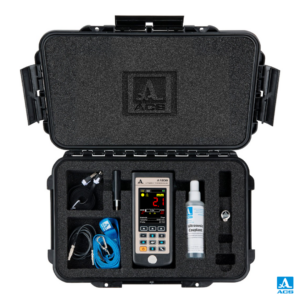

A1208 Ultrasonic Thickness Gauge
S3567 2.5 MHz Single-Crystal Transducer
LEMO Connection Cable (1.2 m)
USB Power Adapter
USB A – Micro B Cable
Soft Protective Cover
Carrying Case
Pipe wall thickness measurement
Boiler and pressure vessel inspection
Corrosion monitoring
Ship hull and storage tank inspection
Plastic component thickness testing
Operates in temperatures from -30°C to +50°C
Compatible with single-crystal and dual-crystal transducers
High-contrast TFT display
Lightweight and portable design
Detection of pitting corrosion
Suitable for small-diameter and thin-walled pipes
User-friendly interface for quick operation
Thickness Range (S3567 2.5 MHz Probe): 0.8 – 300 mm
Thickness Range (D2763 10 MHz Probe): 0.7 – 30 mm
Resolution: 0.01 mm / 0.1 mm
Measurement Accuracy: Up to ±(0.01X + 0.05) mm
Minimum Curvature Radius: 10 mm
Velocity Range: 500 – 19,999 m/s
Display Type: TFT
Battery Type: Built-in Lithium Rechargeable
Battery Life: Up to 9 Hours
Operating Temperature: -30°C to +50°C
Dimensions: 161 × 70 × 24 mm
Weight: 210 g
