The A1210 Ultrasonic Thickness Gauge is an advanced thickness measurement instrument featuring both digital readout and A-Scan visualization modes. It is designed for accurate thickness measurement, corrosion monitoring, flaw detection, and inspection through coatings, offering superior reliability for industrial applications.
Product: A1210
A1210
Thickness measurement range: 0.7 to 300 mm
Suitable for metals, cast iron, plastics, and high-attenuation materials
Measures through paint, polymer, and insulating coatings
A1210
High-resolution measurements down to 0.01 mm
A-Scan display for verification of readings
Patented auto-correlation algorithm for improved measurement accuracy
Reliable inspection on corroded and curved surfaces

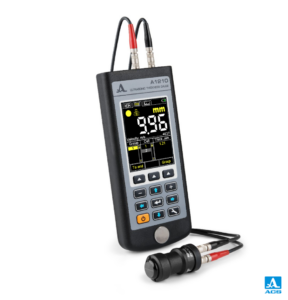

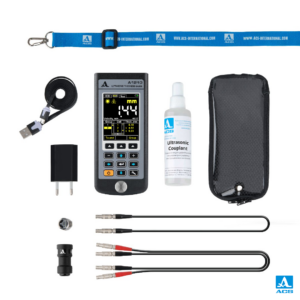

A1210 Ultrasonic Thickness Gauge
S3567 2.5 MHz Single-Crystal Transducer
D1771 4.0 MHz Dual-Crystal Transducer
Single LEMO Connection Cable (1.2 m)
Double LEMO Connection Cable (1.2 m)
USB Power Adapter
USB A – Micro B Cable
Soft Protective Cover

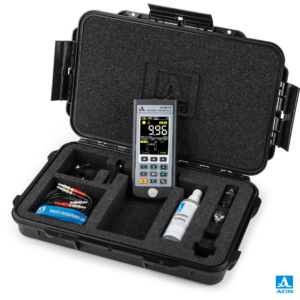

Carrying Case
Pipe wall thickness measurement
Boiler and pressure vessel inspection
Corrosion monitoring
Detection of laminations and inclusions
Coating-through thickness measurement
Inspection of metal, cast iron, and plastic components
Digital and A-Scan display modes
Compatible with single-crystal and dual-crystal transducers
Patented automatic adaptation to surface roughness and curvature
Through-coating measurement capability
Color TFT display
Built-in magnetic holder for hands-free operation
Fast scanning for defect and lamination detection
Portable and lightweight design
Thickness Range (S3567 Probe): 0.8 – 300 mm
Thickness Range (D1771 Probe): 0.7 – 300 mm
Resolution: 0.01 mm / 0.1 mm
Measurement Accuracy: Up to ±(0.01X + 0.05) mm
Minimum Curvature Radius: 10 mm
Velocity Range: 500 – 19,999 m/s
Display Type: Color TFT
Battery Type: Built-in Li-Pol Rechargeable Battery
Battery Life: Up to 9 Hours
Operating Temperature: -20°C to +50°C
Dimensions: 161 × 70 × 24 mm
Weight: 230 g
