The A1211 Mini Ultrasonic Flaw Detector is an ultra-compact and lightweight ultrasonic inspection instrument designed for flaw detection, weld inspection, corrosion monitoring, and thickness measurement. Its portable design, intuitive interface, and high-performance capabilities make it ideal for field inspections in confined and hard-to-reach locations.
Product: A1211 MINI
A1211 MINI
Operating frequency range: 0.5 to 10 MHz
Suitable for metals, plastics, and welded structures
Thickness measurement and flaw detection in a single device
A1211 Mini
Gain adjustment from 0 to 80 dB
1 dB gain control resolution
Precise flaw location and sizing
Real-time A-Scan visualization

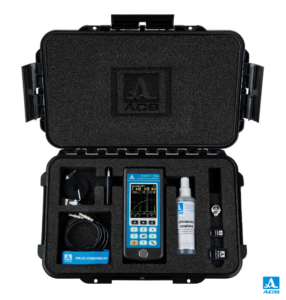

A1211 Mini Ultrasonic Flaw Detector
S3568 2.5 MHz Straight Beam Transducer
S5182 2.5 MHz 45° Angle Beam Transducer
S5096 5.0 MHz 45° Angle Beam Transducer
Single LEMO Connection Cable (1.2 m)
USB Power Adapter
USB A – Micro B Cable
Soft Protective Cover
Carrying Case
Weld inspection
Corrosion detection
Crack and defect detection
Lamination and delamination inspection
Thickness measurement
Inspection of metal and plastic components
Ultra-lightweight design (230 g)
High-contrast TFT display
Automatic display rotation
A-Scan display with detailed inspection data
Magnetic holder for hands-free operation
Simple user-friendly interface
Portable for field and travel applications
Long battery operating time
Frequency Range: 0.5 – 10 MHz
Velocity Range: 1,000 – 14,999 m/s
Gain Range: 0 – 80 dB
Gain Step: 1 dB
Display Type: Color TFT
Display Resolution: 320 × 240
Battery Type: Li-Pol Rechargeable
Battery Voltage: 3.7 V
Operating Time: Up to 9 Hours
Dimensions: 161 × 70 × 24 mm
Weight: 230 g
Operating Temperature: -20°C to +55°C
