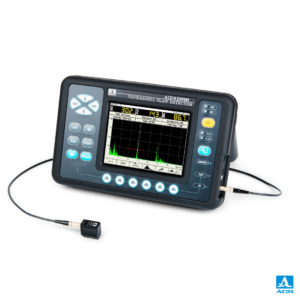

The A1214 EXPERT Ultrasonic Flaw Detector is a professional-grade ultrasonic inspection instrument designed for weld testing, flaw detection, corrosion monitoring, and thickness measurement. Featuring advanced digital signal processing, RF signal display, voice annotations, and extensive memory storage, it provides accurate and reliable inspection results for demanding NDT applications.
Product: A1214 EXPERT
A1214 EXPERT
Maximum inspection thickness: 3000 mm (Steel)
Operating frequency range: 0.5 to 15 MHz
Suitable for metals, welds, plastics, and composite materials
A1214 EXPERT
Thickness measurement accuracy: ±(0.01D + 0.2) mm
Defect depth accuracy: ±(0.01H + 0.2) mm
Precise flaw sizing using Digital TCG, DAC, and DGS methods

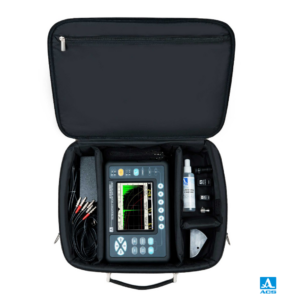

A1214 EXPERT Ultrasonic Flaw Detector
D1771 4.0 MHz Dual-Crystal Transducer
S3568 2.5 MHz Straight Beam Transducer
S5182 2.5 MHz 45° Angle Beam Transducer
S5096 5.0 MHz 45° Angle Beam Transducer
Single LEMO Cable (1.2 m)
Double LEMO Cable (1.2 m)
Network Adapter and Cable
USB Cable
V2/25 Calibration Block
Soft Protective Cover
Carrying Bag
Weld inspection
Corrosion and crack detection
Lamination and inclusion detection
Thickness measurement
Quality control inspections
Metal and plastic component testing
Large 640 × 480 high-resolution color TFT display
Real-time RF signal display mode
User-friendly interface with shortcut keys
Digital TCG with 32 programmable points
DAC and DGS flaw evaluation functions
Voice comments for saved inspections via Bluetooth headset
Storage for 2,000 A-Scan images
Library of 100 inspection configurations
Quick-detachable frost-resistant battery
On-screen quick access menu
Semi-automatic angle and wedge delay correction
Rugged design for field and industrial environments
Maximum Test Thickness (Steel): 3000 mm
Frequency Range: 0.5 – 15 MHz
Velocity Range: 1,000 – 14,999 m/s
Gain Range: 0 – 100 dB
Dynamic TCG Range: ≥ 20 dB
Thickness Accuracy: ±(0.01D + 0.2) mm
Defect Depth Accuracy: ±(0.01H + 0.2) mm
Display Type: Color TFT
Display Resolution: 640 × 480 Pixels
Memory Capacity: 2,000 A-Scan Images + Voice Comments
Battery Voltage: 11.1 V
Operating Time: Up to 8 Hours
Operating Temperature: -30°C to +55°C
Dimensions: 258 × 164 × 110 mm
Weight: 1.8 kg
