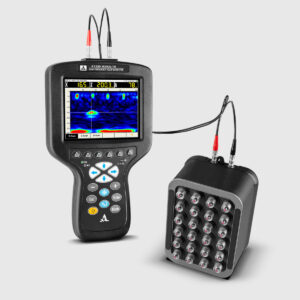

The A1220 MONOLITH Ultrasonic Tester is a versatile multi-functional NDT instrument designed for concrete inspection and evaluation. It combines thickness measurement, flaw detection, pulse velocity testing, and 3D tomography in a single portable system.
Product: A1220 Monolith 3D
A1220 Monolith 3D
Measuring range up to 1,000 mm
Suitable for concrete thickness measurement and internal defect detection
Supports pulse-echo and through-transmission testing modes
A1220 MONOLITH
High-resolution imaging with 24 DPC transducers
Wide bandwidth operation for reliable results
Advanced 3D visualization and defect assessment
Designed for advanced ultrasonic testing of concrete structures
Concrete thickness measurement
Internal flaw and void detection
Pulse velocity testing
Reinforcement and structural assessment
3D concrete imaging and diagnostics
Pulse-echo and through-transmission modes
Thickness gauge, flaw detector, 3D tomograph, and pulse velocity tester in one unit
Wear-resistant DPC transducers
3D visualization with INTROVIEW® software
Compatible with A1040 MIRA and other ACS Instruments
Continuous operation of 8+ hours
Measuring Range: 0–1,000 mm
Number of Transducers: 24 (M2502 Antenna Array)
Frequency Range: 10–100 kHz
Nominal Frequency: 50 kHz
Operating Time: ≥ 8 Hours
3D Modes: ISO-Surface, Texture Mapping, Maximum Intensity Projection
2D Modes: B-Scan, C-Scan, D-Scan, Cutting Plane, Gated Volume
Software: INTROVIEW® 3D Software
Includes: Electronic Unit, M2502 Antenna Array, Power Supply, USB Cable, LEMO Cable Set, Hard Carry Case
