The A1270 EMA Thickness Gauge is an advanced ultrasonic thickness measurement instrument utilizing innovative Electro-Magnetic Acoustic (EMA) technology. It enables accurate thickness measurements of steel and aluminum components without the need for couplant, making inspections faster, cleaner, and more efficient.
Product: A1270 EMAT
A1270 EMAT
Thickness measurement range: 1 to 200 mm
Suitable for steel, aluminum, and metal alloy components
Measures through coatings up to 1.5 mm thick
A1270
Measurement accuracy: ±(0.01X + 0.1) mm
A-Scan verification for reliable measurements
Accurate thickness measurement without coating removal

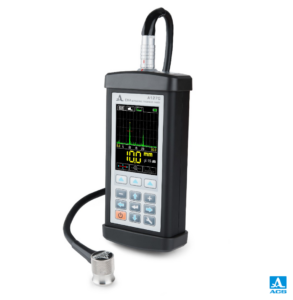

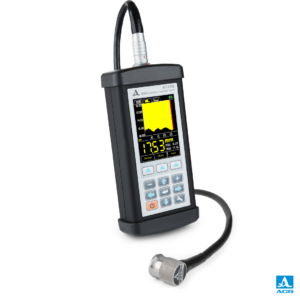

A1270 EMA Thickness Gauge Electronic Unit
EMA Transducer S3850 5.0A0D8ES
Power Adapter (220V–15V)
USB A – Micro B Cable

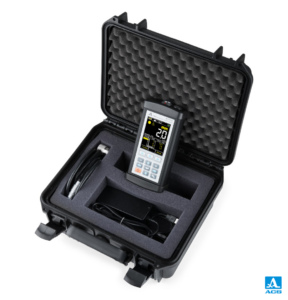

Carrying Case
Pipe and vessel thickness measurement
Ship hull inspection
Corrosion monitoring
Thickness measurement through paint and coatings
Sheet metal inspection
Material anisotropy evaluation
Couplant-free EMA technology
Innovative pulsed electromagnet transducer design
No permanent magnet adhesion to steel surfaces
Digital, A-Scan, and B-Scan display modes
Through-coating measurement capability
Small 8 mm transducer aperture for small-diameter pipes
Scanning mode for rapid inspections
Large color TFT display
Internal memory for measurements and A-Scans
USB connectivity for data transfer
Thickness Measurement Range: 1 – 200 mm
Operating Frequency Range: 2.5 – 5.0 MHz
Measurement Accuracy: ±(0.01X + 0.1) mm
Velocity Range: 1,000 – 9,999 m/s
Display: 3.5″ Color TFT Anti-Glare Display
Data Storage: 50,000 Measurements
A-Scan Storage: 4,000 A-Scans
Battery Voltage: 13.2 V
Battery Operating Time: Up to 9 Hours
Communication Interface: USB
Dimensions: 190 × 87 × 40 mm
Weight: 900 g
Operating Temperature: -30°C to +50°C
