The A1550 IntroVisor TFM Ultrasonic Flaw Detector-Tomograph is an advanced portable inspection system that combines traditional ultrasonic flaw detection with real-time tomographic imaging. Using Total Focusing Method (TFM) technology and phased array transducers, it provides high-resolution visualization of internal structures, enabling accurate defect detection, sizing, and documentation.
Product: A1550 INTROVISOR
A1550 INTROVISOR
Real-time B-Scan and C-Scan imaging
Inspection of metals, plastics, composites, and welds
High-resolution flaw detection and sizing
Supports multiple phased array and conventional probes
A1550 IntroVisor
TFM technology with virtual focusing at every inspection point
High sensitivity and spatial resolution
Accurate flaw location, sizing, and characterization
Enhanced detection of cracks, corrosion, laminations, and inclusions

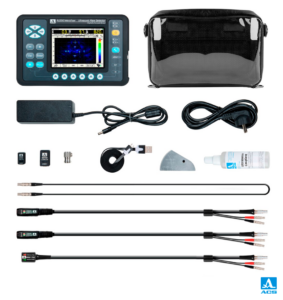

A1550 IntroVisor Electronic Unit
M9065 Phased Array Transducer (4 MHz Shear Wave)
M9060 Phased Array Transducer (4 MHz Longitudinal Wave)
M9170 Phased Array Transducer (4 MHz Shear Wave)
S3568 Straight Beam Transducer (2.5 MHz)
S5182 Angle Beam Transducer (2.5 MHz, 45°)
S5096 Angle Beam Transducer (5 MHz, 45°)
LEMO Connection Cable (1.2 m)
USB A – Mini B Cable
Weld inspection
Corrosion monitoring
Crack and defect detection
Composite material inspection
Thickness measurement
Lamination and inclusion detection
Structural integrity assessment
Total Focusing Method (TFM) imaging
Real-time B-Scan visualization
Traditional A-Scan flaw detector mode

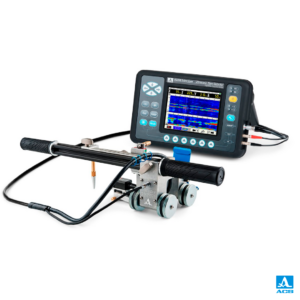

Weld scanning C-Scan mode
High-resolution phased array technology
3D weld reconstruction software support
Supports shear and longitudinal wave inspections
Enhanced flaw sizing capability
Digital storage and documentation of inspection results
Portable rugged design for field use
Technology: Total Focusing Method (TFM)
Phased Array Elements/Channels: 16
Operating Frequencies: 1.0, 1.8, 2.5, 4.0, 5.0, 7.5, 10 MHz
Dynamic Range: 100 dB
Display Type: Color TFT
Display Resolution: 640 × 480 Pixels
Battery Operating Time: Up to 8 Hours
Operating Temperature: -10°C to +55°C
Dimensions: 260 × 166 × 80 mm
Weight: 1.8 kg
