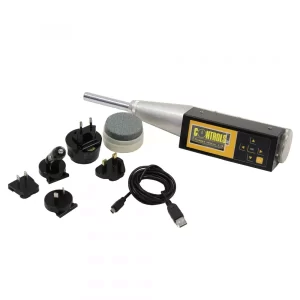

The 58-C0181/DGT Digital Concrete Hammer is an advanced rebound hammer designed for non-destructive evaluation of concrete quality and uniformity. It provides digital measurement, data storage, and compressive strength estimation using preloaded and customizable correlation curves.
Product: Digital Concrete Hammer
Digital Concrete Hammer
Compressive strength estimation from 10 to 100 N/mm²
Suitable for in-situ concrete quality assessment
Large memory capacity for field testing and reporting
58-C0181/DGT
Impact energy of 2.207 Nm
Integrated triaxial inclinometer for automatic angle correction
Statistical analysis including average, standard deviation, and invalid value rejection
EN 12504-2
ASTM C805
EN 13791 (Correlation Procedures)
Concrete uniformity assessment
Compressive strength estimation
Quality control of concrete structures
Detection of weak or deteriorated concrete zones
Comparative testing of concrete elements
Digital rebound hammer with graphic display
Automatic strength estimation
Built-in triaxial inclinometer
User-customizable correlation curves
USB data transfer and PC software included
Internal memory for test storage
Rechargeable lithium-ion battery
Numerical and graphical result display
Impact Energy: 2.207 Nm
Measuring Range: 10–100 N/mm²
Display: 128 × 64 Pixel Graphic Display
Memory Capacity: 2 MB
Battery: 1600 mAh Lithium-Ion
Charging Time: 4 Hours
Power Supply: 110–240 V, 50/60 Hz
Dimensions: 360 × 80 × 60 mm
Weight: 1.3 kg
Operating Temperature: 0°C to +40°C
Operating Humidity: 0–90% RH
