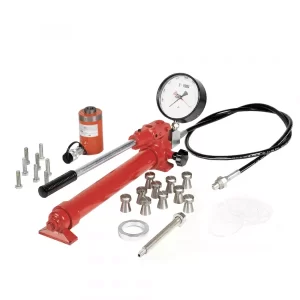

The 58-C0178 Pull-Out Test Apparatus is designed to determine the pullout strength of hardened concrete by measuring the force required to extract an embedded insert along with the surrounding concrete. It provides a reliable indication of in-situ concrete strength and quality.
Product: Pullout Test Apparatus
Pullout Test Apparatus
Maximum load capacity: 100 kN
Suitable for testing fresh and hardened concrete
Used for in-situ concrete strength assessment
58-C0178
Precision Bourdon pressure gauge
Reliable pullout force measurement
Consistent evaluation of concrete strength and integrity
Related to EN 12504-3
Related to UNI 10157
In-situ concrete strength evaluation
Quality control of concrete structures
Assessment of hardened concrete
Construction and structural testing
Hydraulic pull-out testing system
Portable field-use design
Suitable for pre-embedded and post-installed inserts
High-capacity hydraulic jack
Supplied in a rugged carrying case
Easy operation and reliable results
Maximum Load Capacity: 100 kN
Pressure Gauge Diameter: 150 mm
Insert Diameter: 30 mm
Main Case Dimensions: 740 × 300 × 255 mm
Main Unit Weight: Approx. 21 kg
Accessory Kit Weight: Approx. 11 kg
Hydraulic Jack
Precision Bourdon Gauge
Bearing Ring
10 Pull-Out Inserts
Carrying Case
User Documentation
