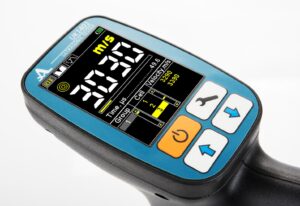

The UK1401 Ultrasonic Tester is a compact and lightweight handheld instrument designed for rapid assessment of concrete quality and compressive strength. Its ergonomic one-piece design and wear-resistant DPC transducers make it ideal for efficient on-site testing.
Product: UK1401 SURFER
UK1401 SURFER
Direct estimation of concrete compressive strength
Velocity measurement range: 1,000–12,000 m/s
Suitable for quality control and concrete uniformity assessment
UK1401
Integrated calibration curves for direct strength estimation
Spring-loaded DPC transducers for consistent measurements
High-precision ultrasonic pulse velocity testing
Designed for non-destructive concrete strength and quality evaluation
Concrete compressive strength estimation
Concrete quality assessment
Uniformity testing
On-site inspection of concrete structures
Quality control during construction
Compact one-piece design for single-hand operation
Wear-resistant DPC transducers
Ultra-lightweight and shockproof housing
Anti-glare 2.8″ color TFT display
Memory for up to 10,000 measurements
USB data transfer capability
Long battery operating time
Operating Frequency: 50 kHz
Wave Type: Longitudinal
Measuring Base: 15 ± 1 mm
Velocity Range: 1,000–12,000 m/s
Time Measurement Range: 12.5–150 μs
Operating Time: Up to 16 Hours
Operating Temperature: -20°C to +55°C
Weight: 156 g
